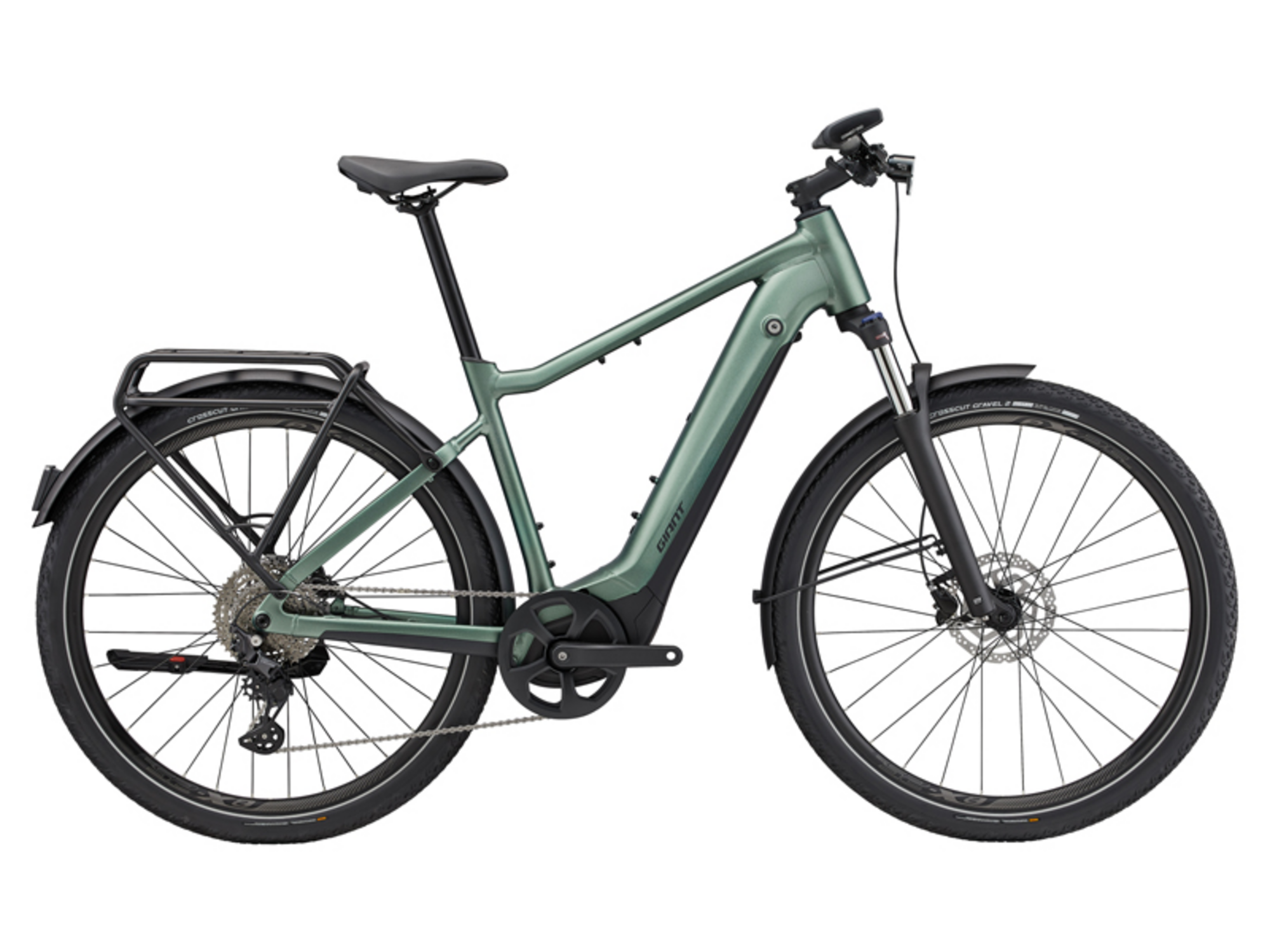

Giant Explore E+ 1 DD

Giant Explore E+ 1 DD
$3,600.00
Color: Misty Forest
Size: Select size
Wheel Size: 700c

Details

Go beyond city limits and find new adventures. the new explore e+ gives you the power to ride farther with a powerful new motor and longer range. smooth suspension and larger tires make it a highly capable trekker for smooth roads, gravel or dirt.

KEY PERFORMANCE FACTORS

Smooth ride quality
ALUXX aluminum frameset with a 100mm suspension fork and new SyncDrive motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.

Integrated accessories
RideControl Dash allows to check range, battery level and support mode, along with standard cycling data such as speed and distance

Longer Range
EnergyPak battery gives riders the freedom to ride farther.

Geometry Chart:
MediumLargeX-Large
ASEAT TUBE LENGTH (inch) 17.119.121.1
BSEAT TUBE ANGLE 73.0°73.0°73.0°
CTOP TUBE LENGTH (inch) 23.62424.8
DHEAD TUBE LENGTH (inch) 5.56.16.7
EHEAD TUBE ANGLE 69.5°69.5°69.5°
FFORK RAKE (inch) 222
GTRAIL (inch) 3.33.33.3
HWHEELBASE (inch) 4545.546.3
ICHAIN STAY LENGTH (inch) 18.518.518.5
JBOTTOM BRACKET DROP (inch) 2.42.42.4
KSTACK (inch) 26.326.927.4
LREACH (inch) 15.615.816.4
MHANDLEBAR WIDTH (inch) 27.227.227.2
NSTEM LENGTH (inch) 3.13.93.9
OCRANK LENGTH (inch) 6.76.76.7
PWHEEL SIZE 29"29"29"

Specs

Motor SyncDrive Sport 2, 75Nm, powered by Yamaha
Pedals Aluminum Platform
Battery EnergyPak Smart 625, EnergyPak Plus 250 range extender compatible
Controller/Display Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Fork SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Hubs Giant eTracker, [F] 110x15 [R] 142x12
Rims eX25, Tubeless Ready, 622x25 Aluminium
Stem Giant Contact (S/M: 80mm L/XL/XXL 100mm)
Chain Shimano LinkGlide, CN-LG500
Frame ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Tires Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Brakes Shimano BR-MT200, hydraulic disc, 180mm
Saddle Selle Royal Vivo Ergo Moderate Unisex
Spokes Stainless steel, e-bike optimized
Crankset Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Shifters Shimano Deore, LinkGlide
Handlebars Giant Connect Riser 31.8x690mm
Brake Levers Shimano BL-MT201
Rear Derailleur Shimano Deore LinkGlide, 10-speed, Shadow+
Accessories & Extras KSA40 direct mount kickstand
Cassette/Freewheel Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Misty Forest / Medium / 700c 4712878813588 2303719155
Misty Forest / Large / 700c 4712878813595 2303719157
Misty Forest / X-Large / 700c 4712878813601 2303719158
